Pulp or Knife Edge Gate Valve
Click To Zoom in

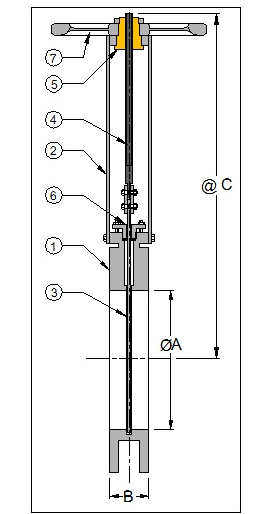

| Valve Size ∅ A | B | C | |
| Inch | MM | ||
| 4” | 100 mm | 55 | 370 |
| 5” | 125 mm | 58 | 440 |
| 6” | 150 mm | 58 | 470 |
| 8” | 200 mm | 58 | 550 |
| 10” | 250 mm | 70 | 655 |
| 12” | 300 mm | 76 | 725 |
| 14” | 350 mm | 76 | 850 |
| 16” | 400 mm | 88 | 955 |
| PART LIST | ||
| Sr. No. | Description | Material |
| 1 | Body | Cast Iron (IS 210 FG. 260) /Cast Steel (ASTM A-216 Gr. WCB) |
| 2 | Bonnet | Mild Steel (IS 2062) |
| 3 | Gate | AISI – 304 |
| 4 | Spindle | AISI – 410 (Hardened) |
| 5 | Yoke | S. G. Iron |
| 6 | Gland Bracket | Mild Steel (IS 2062) |
| 7 | Hand wheel | Cast Iron (IS 210 FG. 260) |
